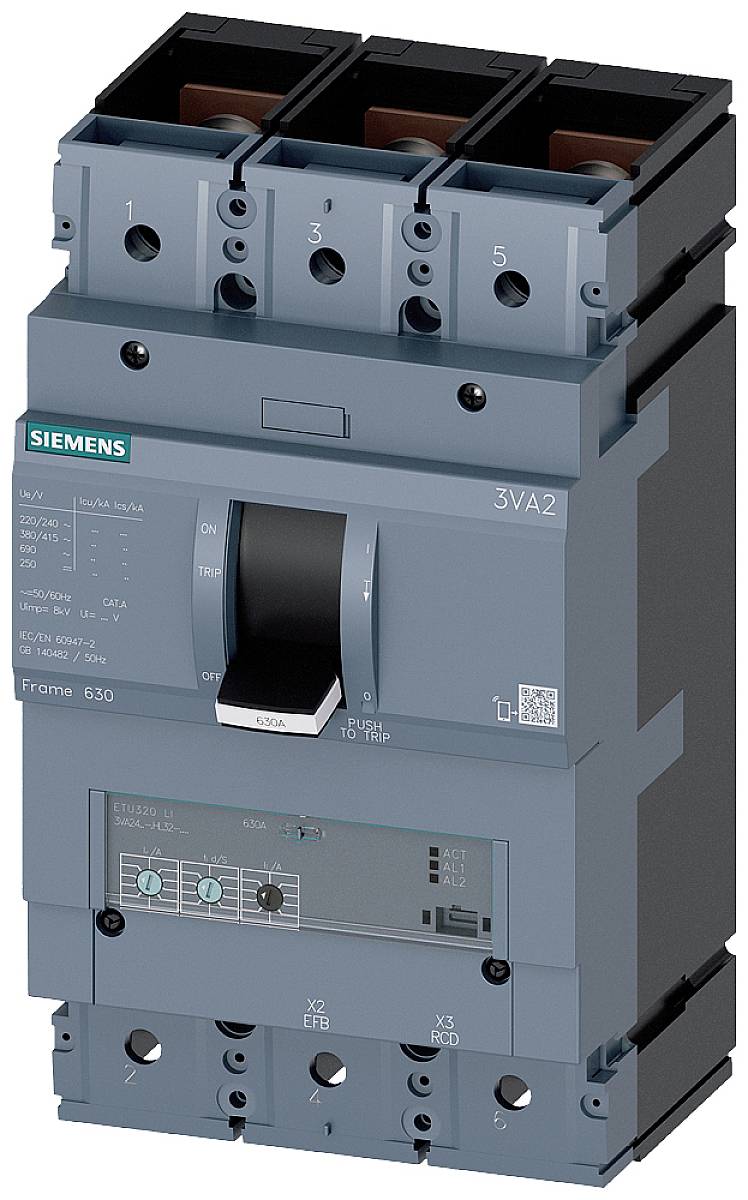

Name: Siemens 3VA2463-5HL32-0AA0 učinski prekidač 1 St. Područje podešavanja (Struja): 252 - 630 A Preklopni napon (maks.): 69
Brand: Siemens
SKU: 1539111
Availability: BackOrder

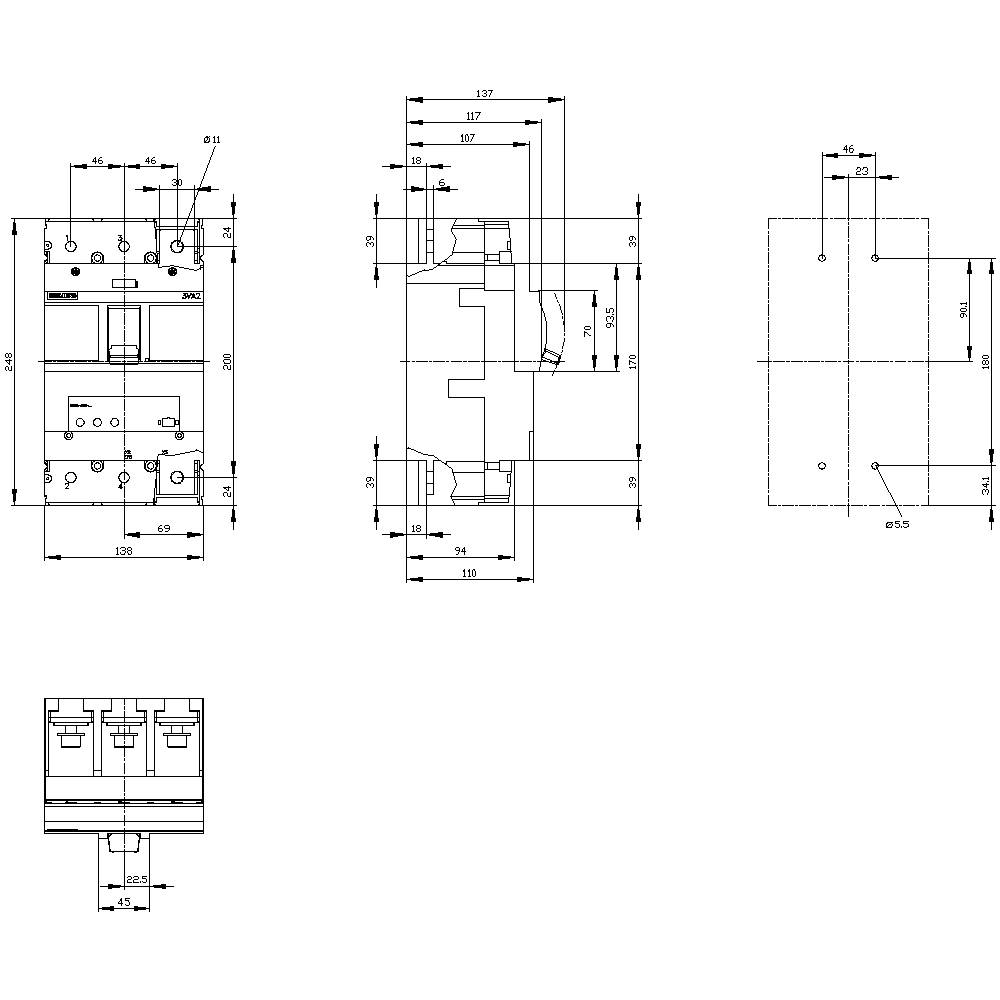

Tehnički nacrt električnog prekidača s mjernim oznakama u milimetrima. Prikazani su prednji, bočni i pogled odozgo.

Linearni crtež/Nacrt sklopa

Vrsta proizvoda

učinski prekidač

Područje podešavanja struje (maks.)

630 A

Priključak

vijak

Vrsta ambalaže

Piece

Tip

3VA2463-5HL32-0AA0

Tehnički list (PDF)

Dostava pon,26.10.

Broj

kom. - zaliha Njemačka

Ukupno (2.295,00 € / komad)

2.295,00 €

uklj. PDV

samo 110,65 €

Uključena je politika povrata u roku od 14 dana

Obrazac za prijavu nezakonitog sadržaja

Tehnički podaci

Dizajn: Zaštita sustava Mehanički vijek trajanja: 15000 Električni vijek trajanja: 4000 Izolacijski napon: 800 V Frekvencija: 50/60 Hz Gubitak snage: 54 W Težina: 5.152 kg

Vrsta ambalaže: Piece

Vrsta proizvoda: učinski prekidač

Tip: 3VA2463-5HL32-0AA0

Područje podešavanja struje (min.): 252 A

Područje podešavanja struje (maks.): 630 A

Područje podešavanja (Struja): 252 - 630 A

Broj polova: 3-polni

Preklopni napon (maks.): 690 V/AC

Pogodno za seriju: Siemens serija 3VA

Pogodno za marke: Siemens

Vrsta montaže (Relej): fiksna instalacija

Min. temperatura: -25 °C

Maks. temperatura: +70 °C

Klasa rasklopne moći: M

Izvedba nadstrujnog okidača: ETU320

Priključak: vijak

: IP40

Dubina: 110 mm

Širina: 138 mm

Visina: 248 mm

dim.: (Š x V x D) 138 x 248 x 110 mm

Sadržaj: 1 St.

RoHS-konforno: Da

: 0

: 0

: 630 A

: 3

: 250-630 A

: 0

: 690-690 V

: 162 W

: IP40

: Front side

: FALSE

: Screw connection

: Rocker lever

: FALSE

: 55 kA

: TRUE

: FALSE

: TRUE

: Built-in device fixed built-in technique

: TRUE

: TRUE

UKCA: da

Dokumenti i preuzimanja

Podatkovna tablica

Podatkovna tablica 1539111 Siemens 3VA2463-5HL32-0AA0 učinski prekidač 1 St. Područje podešavanja (Struja): 252 - 630 A Preklopni napon (maks.): 69

Upute za rad i sigurnost

Upute za rad i sigurnost 1539111 Siemens 3VA2463-5HL32-0AA0 učinski prekidač 1 St. Područje podešavanja (Struja): 252 - 630 A Preklopni napon (maks.): 69

Opis

circuit breaker 3VA2 IEC frame 630 breaking capacity class M Icu=55kA @ 415V 3-pole, line protection ETU320, LI, In=630A overload protection Ir=250A...630A short-circuit protection Ii=1.5...9x In nut keeper kit 3VA2 molded-case circuit breaker with 8-series ETU for system protection. As an important element of SENTRON protective components for industrial and infrastructure applications, the 3VA molded-case circuit breakers from Siemens provide effective plant, starter and motor protection thanks to reliable shutdown in the event of an overload or short circuit. The 3VA molded-case circuit breakers set new standards in flexibility and the variety of modular accessories available. Standardized accessories for several sizes across all series of the 3VA1 and 3VA2 molded-case circuit breakers. Key features of this version of the 3VA molded-case circuit breaker: 1. Compact design. 2. Available as version for plant protection and generator protection. 3. Available as 3-pole and 4-pole version. 4. Four breaking capacity classes from 55 kA to 150 kA at 415 V. 5. Depending on the size: Rated current 25 A. 630 A. 6. Can be installed fixed, in plug-in design or as withdrawable version. 7. The series has a solid-state overcurrent trip unit. 8. Integrated display for measured values. 9. Integrated measuring function and optional communication connection via Modbus TCP, Modbus RTU, PROFINET and PROFIBUS. 10. Modular and easy-to-fit internal accessories with wide range of functions. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
