Siemens 3SE52320LC05 3SE5232-0LC05 konačni prekidač 240 V/AC 1.5 A podizač s povratom IP67 1 St.
EAN:
Šifra proizvođača:
Kataloški br.:
Tehnički list (PDF)
količina (kom. - zaliha Njemačka)
ušteda
cijena pakiranja (sa PDV-om)
1
-
32,99 €
3
4% = 1,44 €
31,55 €
Količinski popusti - savjet za uštedu
Uštedite 0,00 €
Broj
Ukupno (32,99 € / komad)
32,99 €
sa PDV-om
Uključena je politika povrata u roku od 14 dana
Tehnički podaci
- Vrsta ambalaže
Piece
- Vrsta proizvoda
konačni prekidač
- Priključak
vijak
- Vrsta aktiviranja
podizač
- Sklopni napon
240 V/AC
- Prebacivanje struje (maks.)
1.5 A
- Vrsta kontakta
1 zatvarač
2 otvarač
- Otvor za kontakt
puckanje
- Funkcija
s povratom
IP67
- Veličina navoja
M20
- Materijal
plastika
- Širina
31 mm
- Tip
3SE5232-0LC05
- Sadržaj
1 St.

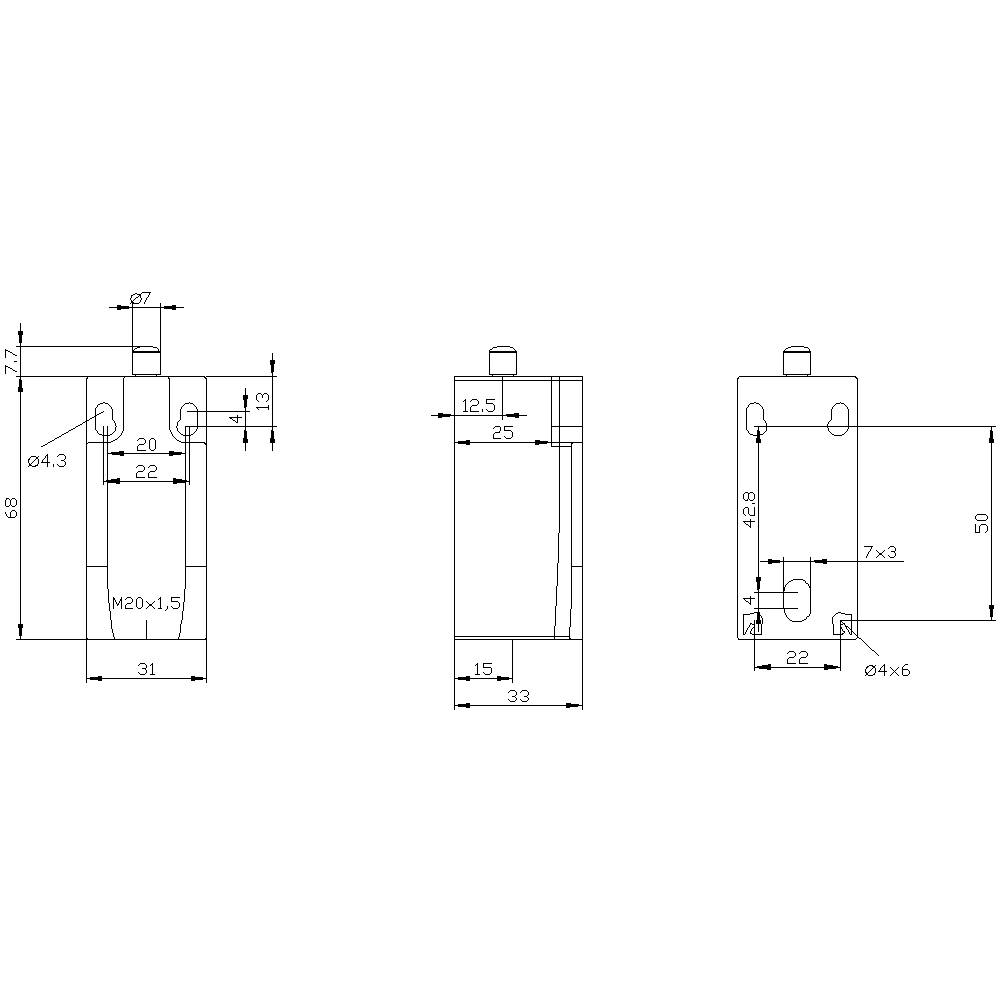

- dim.
(D x Š x V) 31 x 31 x 68 mm
- RoHS-konforno
Da
- Visina
68 mm
- Dužina
31 mm
- Dubina
33 mm
Quick-break switch
Plastic
TRUE
Other
FALSE
None
None
None
Cuboid
IP65
TRUE
2
Plunger
None
FALSE
6 A
0.55 A
3 A
31 mm
33 mm
75.7 mm
FALSE
-25-85 °C
2
1
0
Roller cam straight
12
- UKCA
da
Dokumenti i preuzimanja
Podatkovna tablica
Podatkovna tablica 703033 Siemens 3SE52320LC05 3SE5232-0LC05 konačni prekidač 240 V/AC 1.5 A podizač s povratom IP67 1 St.
Upute za rad i sigurnost
Upute za rad i sigurnost 703033 Siemens 3SE52320LC05 3SE5232-0LC05 konačni prekidač 240 V/AC 1.5 A podizač s povratom IP67 1 St.
Opis
position switch plastic enclosure according to DIN EN 50047, 31 mm device connection 1 x (M20 x 1.5) 1 NO/2 NC quick action contacts rounded plunger, form B Mechanical position switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.
The modular design of the 3SE5 position switches permits a host of variants with a small number of bearing types. The wide variety of plug-in connectors and rollers meets almost all everyday requirements in industry. LEDs indicate the current state of the device. Thanks to quick-connect technology, the time required for connection can be considerably reduced. Operating points and mounting in accordance with EN 50047 and EN 50041. The devices have worldwide approval (IEC, UL). With the corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met. The integrated ASIsafe electronics requires a low current input.
Various enclosure sizes, with different contacts, are available in plastic or metal, or compact design. Some versions are optionally available with an LED status display and M12 plug. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio.
Depending on the design, actuator heads and plug-in connectors, as well as other mounting/connection accessories, are available.
Safety is a SIRIUS business.
The modular design of the 3SE5 position switches permits a host of variants with a small number of bearing types. The wide variety of plug-in connectors and rollers meets almost all everyday requirements in industry. LEDs indicate the current state of the device. Thanks to quick-connect technology, the time required for connection can be considerably reduced. Operating points and mounting in accordance with EN 50047 and EN 50041. The devices have worldwide approval (IEC, UL). With the corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met. The integrated ASIsafe electronics requires a low current input.
Various enclosure sizes, with different contacts, are available in plastic or metal, or compact design. Some versions are optionally available with an LED status display and M12 plug. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio.
Depending on the design, actuator heads and plug-in connectors, as well as other mounting/connection accessories, are available.
Safety is a SIRIUS business.
Isporuka uključuje
- Konačni prekidač 240 V/AC 1.5 A podizač, tipkalno Siemens SIRIUS 3SE5232-0LC05 IP67 1 kom.
