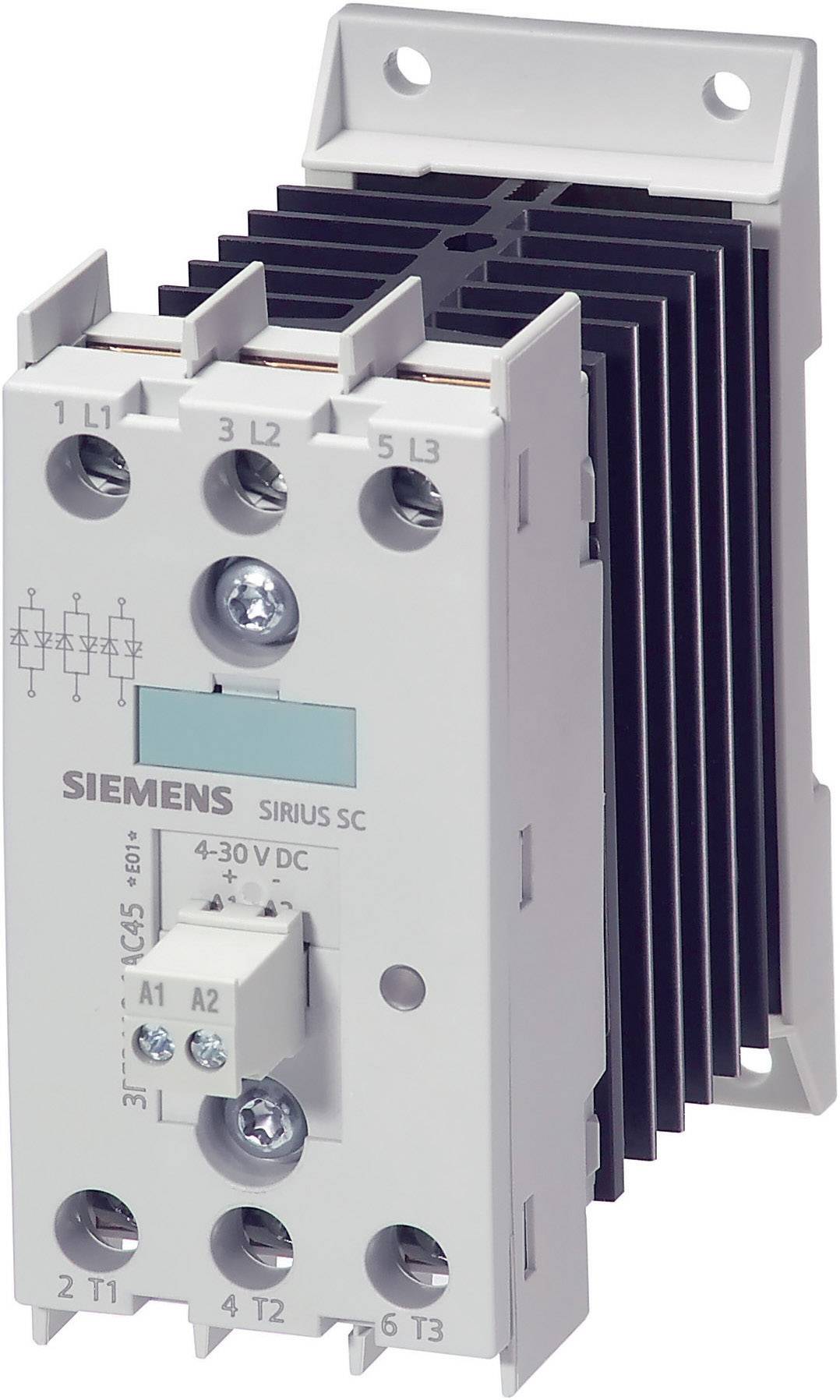

Siemens 3RF2420-1AC45 poluvodički kontaktor nulti napon uklopa 3 zatvarač 20 A 1 St.
EAN:
Šifra proizvođača:
Kataloški br.:
Vrsta proizvoda
poluvodički kontaktor
Broj polova
3-polni
Strujno opterećenje
20 A
Priključak
vijčana stezaljka
Tip
3RF2420-1AC45
Tehnički list (PDF)
Broj
Ukupno (224,99 € / komad)
224,99 €
sa PDV-om
Tehnički podaci
- Trofazni 3-fazni kontaktor 3RF2 AC 51/20 A / 40 ° C 48-600 V / DC 4-30 V 3-fazni regulirani vijak Priključak napona 1200 V
- Vrsta proizvoda
poluvodički kontaktor
- Tip
3RF2420-1AC45
- Broj polova
3-polni
- Prebacivanje
nulti napon uklopa
- Vrsta kontakta
3 zatvarač
- Kontrola napona (min.)
4 V/DC
- Kontrolni napon (maks.)
30 V/DC
- Područje upravljačkog napona
4 - 30 V/DC
- Prebacivanje napona (min.)
48 V/AC
- Preklopni napon (maks.)
600 V/AC
- Strujno opterećenje
20 A
- Vrsta montaže (Relej)
profilna šina
- Priključak
vijčana stezaljka
IP20
- Min. temperatura
-25 °C
- Maks. temperatura
+60 °C

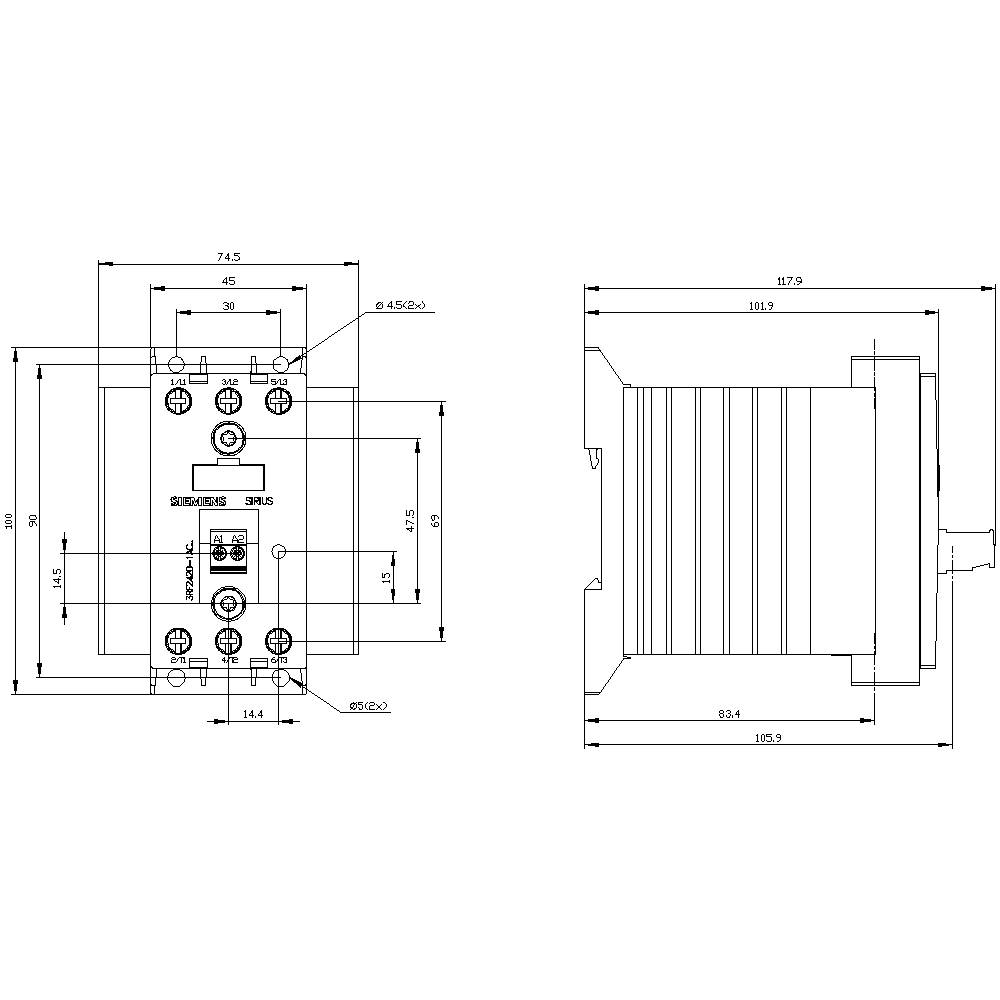

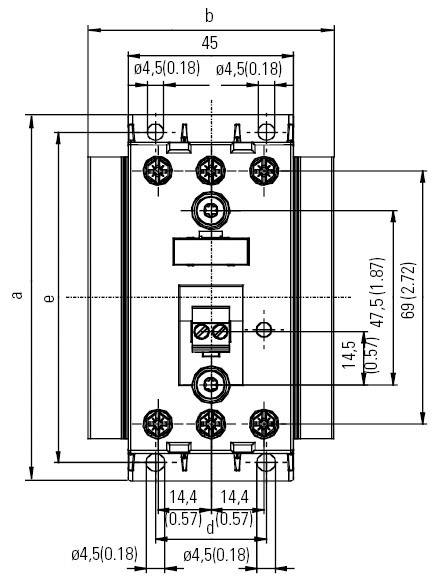

- Širina
90 mm
- Visina
100 mm
- Dubina
112.5 mm
- dim.
(Š x V x D) 90 x 100 x 112.5 mm
- Sadržaj
1 St.
- RoHS-konforno
Da
3
TRUE
4-30 V
22 A
DC
22 A
- UKCA
da
Dokumenti i preuzimanja
Podatkovna tablica
Podatkovna tablica 185999 Siemens 3RF2420-1AC45 poluvodički kontaktor nulti napon uklopa 3 zatvarač 20 A 1 St.
Upute za rad i sigurnost
Upute za rad i sigurnost 185999 Siemens 3RF2420-1AC45 poluvodički kontaktor nulti napon uklopa 3 zatvarač 20 A 1 St.
Izjava o sukladnosti
Izjava o sukladnosti 185999 Siemens 3RF2420-1AC45 poluvodički kontaktor nulti napon uklopa 3 zatvarač 20 A 1 St.
Opis
Solid-state contactor 3-phase 3RF2 AC 51 / 20 A / 40 °C 48-600 V / 4-30 V DC 3-phase controlled screw terminal Blocking voltage 1200 V solid-state contactor SIRIUS 3RF24 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. As the heat sink is already integrated, they can be used directly in the control cabinet. The compact design saves space on the mounting rail. The solid-state contactors can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state contactors are available as single-phase or three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. As the heat sink is already integrated, they can be used directly in the control cabinet. The compact design saves space on the mounting rail. The solid-state contactors can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state contactors are available as single-phase or three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
Isporuka uključuje
- Poluprovodnička zaštita 1 kom. 3RF2420-1AC45 Siemens strujno opterećenje: 20 A uklopni napon (maks.): 600 V/AC
Napomene
Imajte na umu da je proizvod poseban poredak i stoga je isključen iz povrata. Posebna narudžba, bez prava na povrat.
