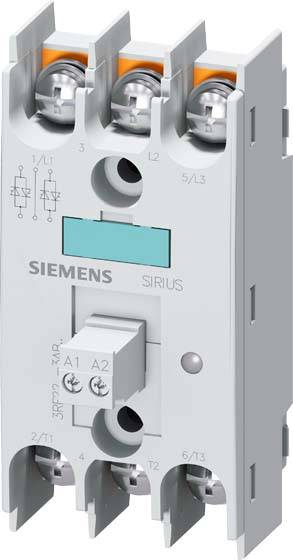

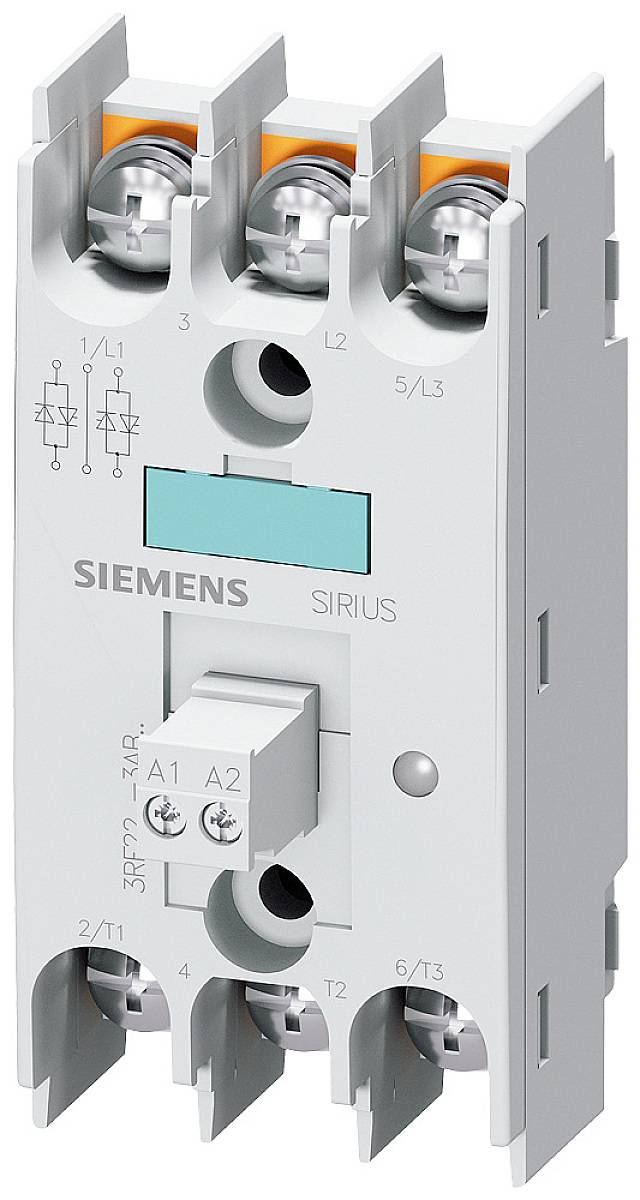

Poluprovodnički relej 1 kom. Siemens 3RF2255-3AB45 strujno opterećenje (maks.): 55 A prebacivanje pri nultom naponu
EAN:
Šifra proizvođača:
Kataloški br.:
Vrsta proizvoda
poluvodički relej
Kontrola napona (min.)
4 V/DC
Kontrolni napon (maks.)
30 V/DC
Preklopni napon (maks.)
600 V/AC
Učitaj struje (maks.)
55 A
Tehnički list (PDF)
Broj
Ukupno (189,99 € / komad)
189,99 €
sa PDV-om
Uključena je politika povrata u roku od 14 dana
Istaknuti proizvodi i detalji
Siemens poluvodički relej 3RF2255-3AB45 Učitaj struje (maks.): 55 A Preklopni napon (maks.): 600 V/AC nulti napon uklopa 1 St.

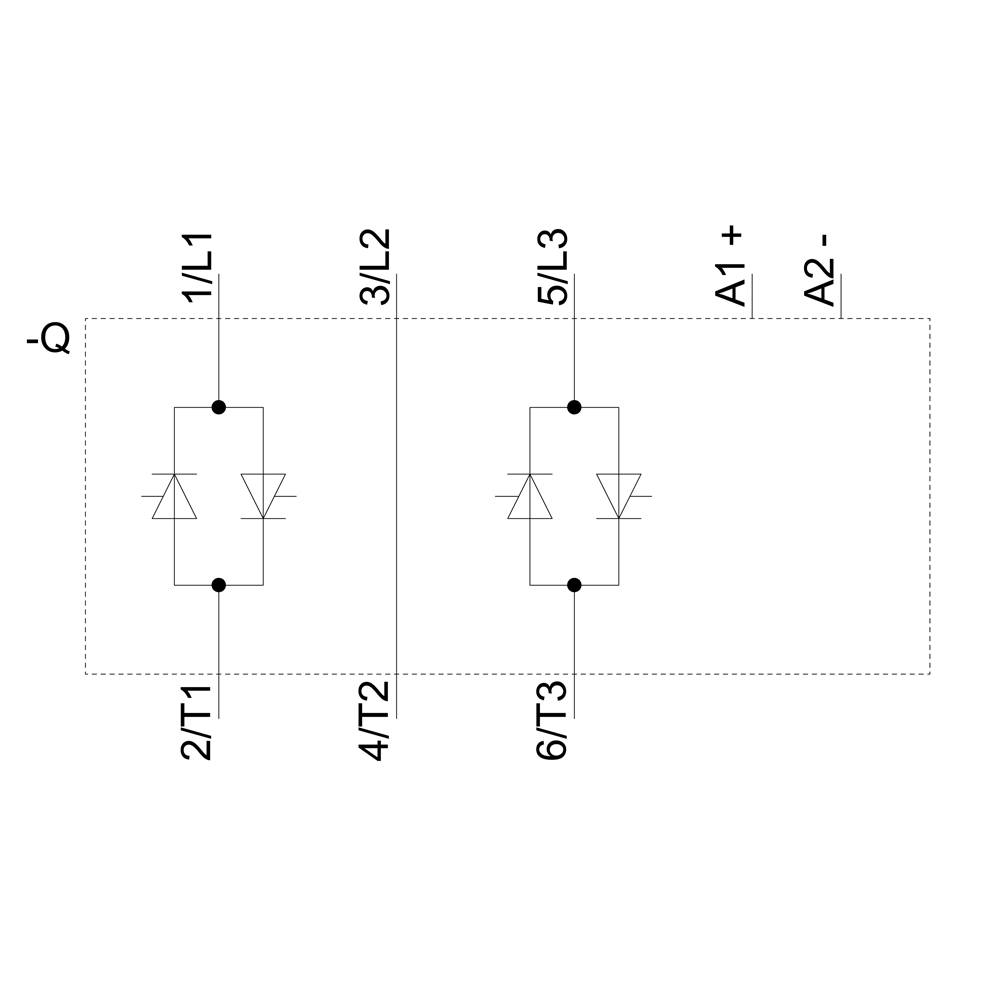

- 2-fazna kontrola
- Ovaj tekst je strojno preveden.
Tehnički podaci
- Izlazni signal: 5 - 33 V / DC / 10 A.
- Signalni ulaz: 24 V / DC / 0,4 W
- Vrsta proizvoda
poluvodički relej
- Tip
3RF2255-3AB45
- Prebacivanje
nulti napon uklopa
- Priključak
ušica 4 mm
- Kontrola napona (min.)
4 V/DC
- Kontrolni napon (maks.)
30 V/DC
- Područje upravljačkog napona
4 - 30 V/DC
- Kontrola struje (maks.)
15 mA
- Prenaponska struja (maks.)
600 A
- Prebacivanje napona (min.)
48 V/AC
- Preklopni napon (maks.)
600 V/AC
- Učitaj struje (maks.)
55 A
- Vrsta kontakta
2 zatvarač
- Min. temperatura
-25 °C
- Maks. temperatura
+60 °C
IP00

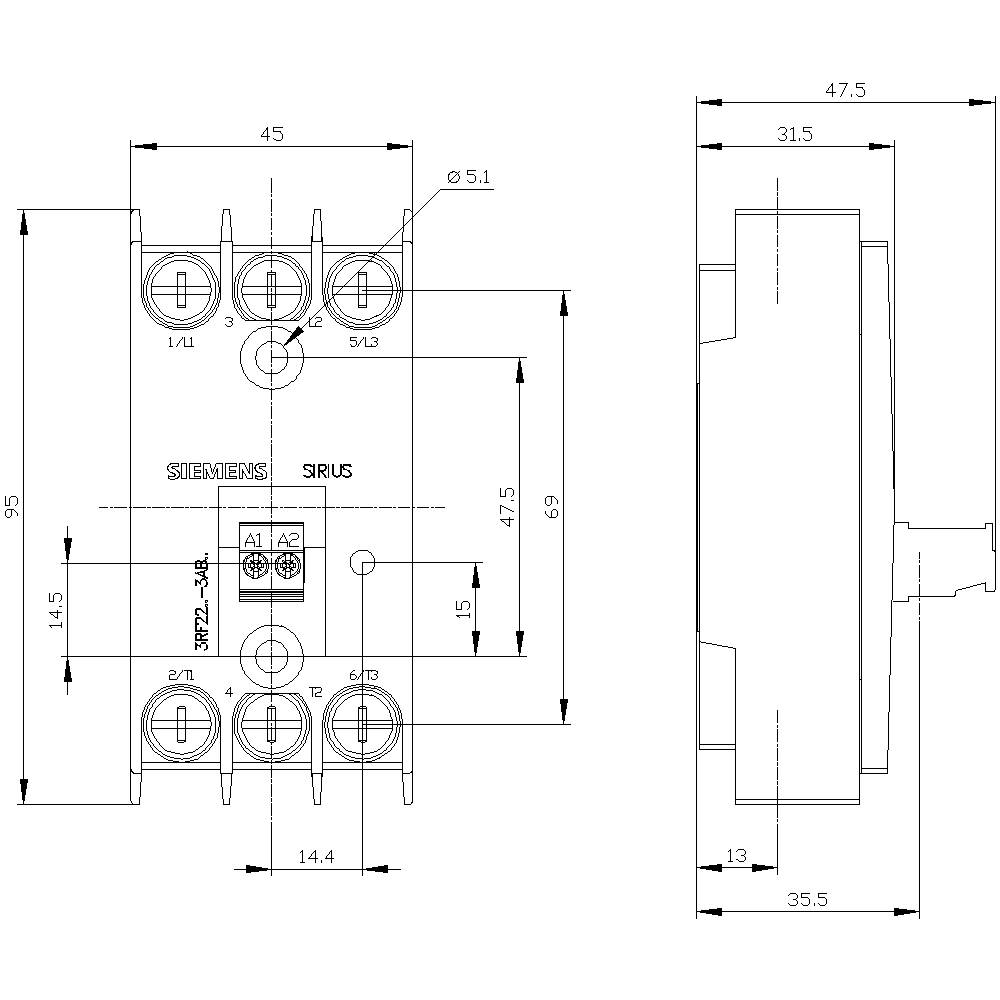

- Širina
45 mm
- Visina
95 mm
- Dubina
47 mm
- Težina
151 g
- RoHS-konforno
Da
- Sadržaj
1 St.
3
TRUE
55 A
DC
50 A
- UKCA
da
Dokumenti i preuzimanja
Podatkovna tablica
Podatkovna tablica 1430868 Poluprovodnički relej 1 kom. Siemens 3RF2255-3AB45 strujno opterećenje (maks.): 55 A prebacivanje pri nultom naponu
Podatkovna tablica 1430868 Poluprovodnički relej 1 kom. Siemens 3RF2255-3AB45 strujno opterećenje (maks.): 55 A prebacivanje pri nultom naponu
Upute za rad i sigurnost
Upute za rad i sigurnost 1430868 Poluprovodnički relej 1 kom. Siemens 3RF2255-3AB45 strujno opterećenje (maks.): 55 A prebacivanje pri nultom naponu
Opis
Semiconductor relay, 3-phase 3RF2 55 A / 40 °C 48-600 V / 4-30 V DC 2-phase controlled Ring cable connection Blocking voltage 1200 V solid-state relay SIRIUS 3RF22 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state relays are available as single-phase devices in two widths, or as three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state relays are available as single-phase devices in two widths, or as three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
Isporuka uključuje
- Poluprovodnički relej 1 kom. Siemens 3RF2255-3AB45 strujno opterećenje (maks.): 55 A prebacivanje pri nultom naponu
Napomene
Imajte na umu da je proizvod poseban poredak i stoga je isključen iz povrata. Posebna narudžba, bez prava na povrat.
