Kontaktor 1 kom. 3RT2037-1AP00 Siemens 3 zatvarač 30 kW 230 V/AC 65 A s pomoćnim kontaktom
EAN:
Šifra proizvođača:
Kataloški br.:
Vrsta proizvoda
kontaktor
Broj polova
3-polni
Nazivni napon
230 V/AC
Strujno opterećenje
65 A
Snaga
30 kW
Tehnički list (PDF)
Broj
Ukupno (279,00 € / komad)
295,00 €
-5 %
279,00 €
sa PDV-om
Uključena je politika povrata u roku od 14 dana
Tehnički podaci
- Težina: 996 g
- Gubitak snage: 3,8 W
- Vrsta proizvoda
kontaktor
- Tip
3RT2037-1AP00
- Veličina
S2
- Broj polova
3-polni

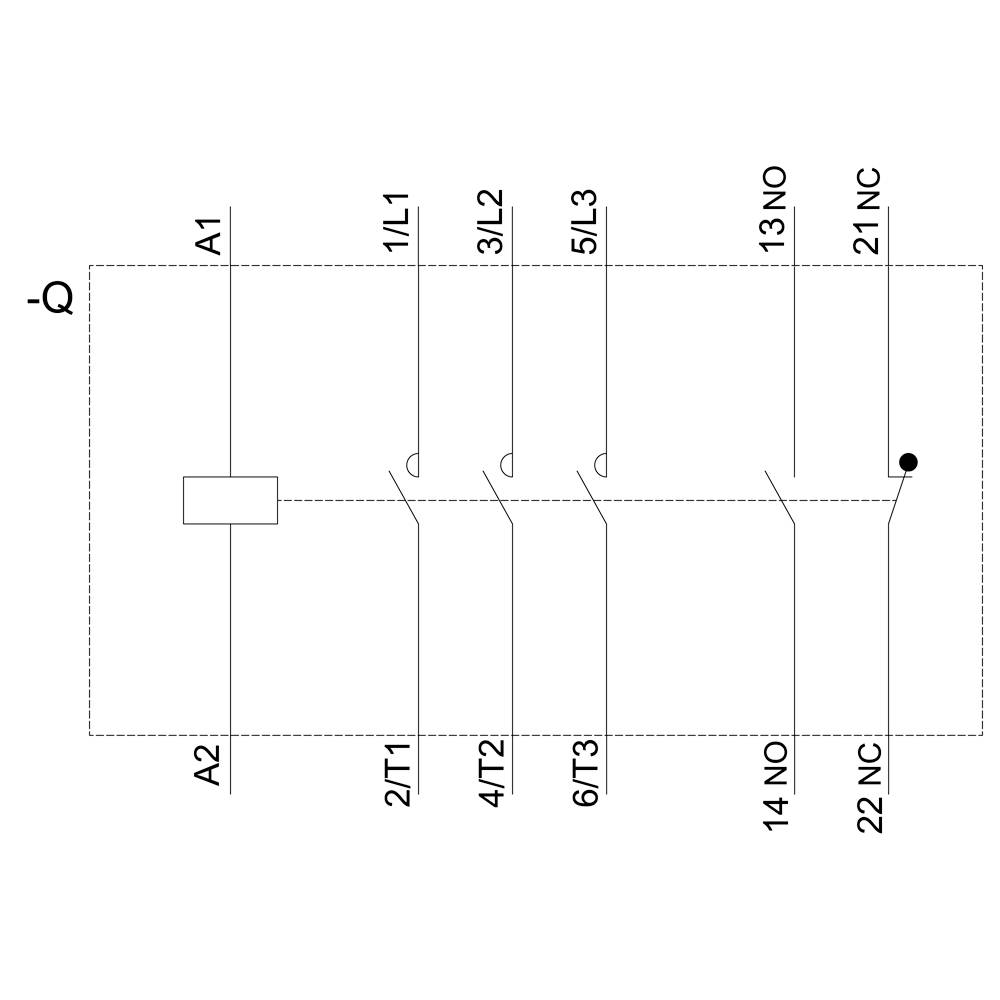

- Vrsta kontakta
3 zatvarač
- Vrsta pomoćnog kontakta
1 zatvarač
1 otvarač
- Nazivni napon
230 V/AC
- Kontrolni napon (maks.)
230 V/AC
- Područje upravljačkog napona
230 V/AC (max)
- Preklopni napon (maks.)
400 V/AC
- Trajna struja (maks.)
65 A
- Strujno opterećenje
65 A
30 kW
- Pogodno za marke
Siemens
- Pogodno za seriju
Siemens serija Sirius
- Određene značajke
s pomoćnim kontaktom
- Vrsta montaže (Relej)
profilna šina
- Priključak
vijčana stezaljka
- Mehanički vijek trajanja
1.0E7
IP20
- Min. temperatura
-25 °C
- Maks. temperatura
+60 °C

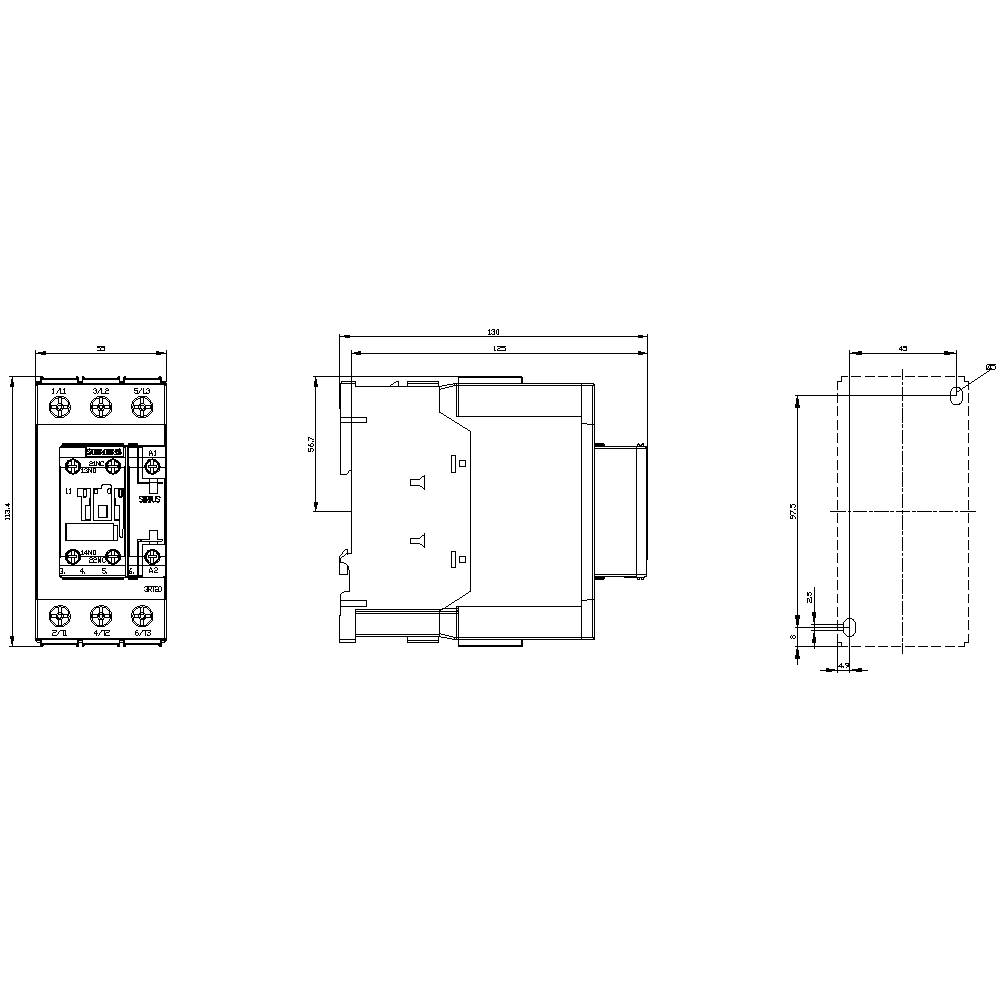

- Širina
55 mm
- Visina
114 mm
- Dubina
130 mm
- dim.
(Š x V x D) 55 x 114 x 130 mm
- Sadržaj
1 St.
- RoHS-konforno
Da
- Težina
1010 g
TRUE
30 kW
3
1
1
65 A
80 A
230-230 V
Screw connection
AC
55 A
36.775
- UKCA
da
Dokumenti i preuzimanja
Podatkovna tablica
Podatkovna tablica 1431035 Kontaktor 1 kom. 3RT2037-1AP00 Siemens 3 zatvarač 30 kW 230 V/AC 65 A s pomoćnim kontaktom
Upute za rad i sigurnost
Upute za rad i sigurnost 1431035 Kontaktor 1 kom. 3RT2037-1AP00 Siemens 3 zatvarač 30 kW 230 V/AC 65 A s pomoćnim kontaktom
Opis
Power contactor, AC-3 65 A, 30 kW / 400 V 1 NO + 1 NC, 230 V AC, 50 Hz 3-pole, size S2 screw terminals Power contactor SIRIUS 3RT2 for switching motors.
The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready.
They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection.

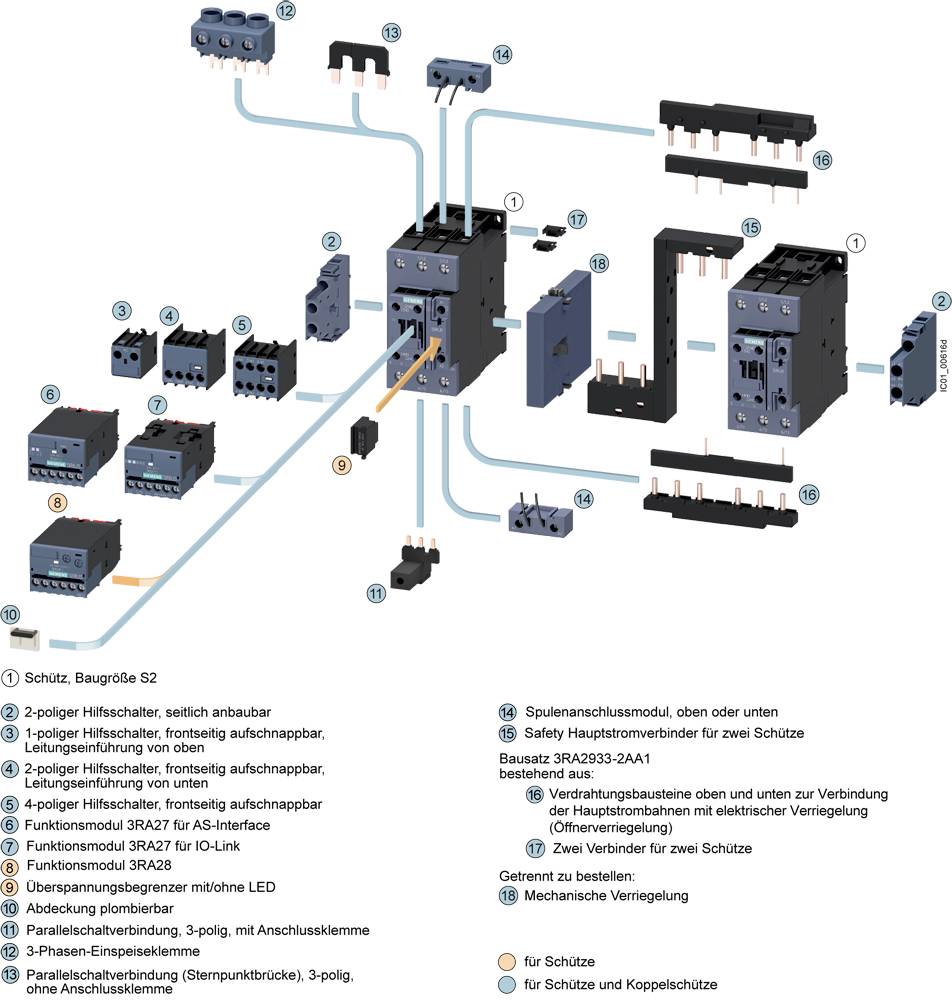

The comprehensive range of accessories, such as auxiliary switches, auxiliary releases etc. is standardized for all sizes. The available link modules, function modules and the SIRIUS 3RV29 infeed system considerably reduce the wiring expense.
The 3RT2 power contactors replace the well-proven 3RT1 series (up to 55 kW).
Simple, efficient and always up to date - SIRIUS modular system.
The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready.
They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection.
The comprehensive range of accessories, such as auxiliary switches, auxiliary releases etc. is standardized for all sizes. The available link modules, function modules and the SIRIUS 3RV29 infeed system considerably reduce the wiring expense.
The 3RT2 power contactors replace the well-proven 3RT1 series (up to 55 kW).
Simple, efficient and always up to date - SIRIUS modular system.
Isporuka uključuje
- Kontaktor 1 kom. 3RT2037-1AP00 Siemens 3 zatvarač 30 kW 230 V/AC 65 A s pomoćnim kontaktom
