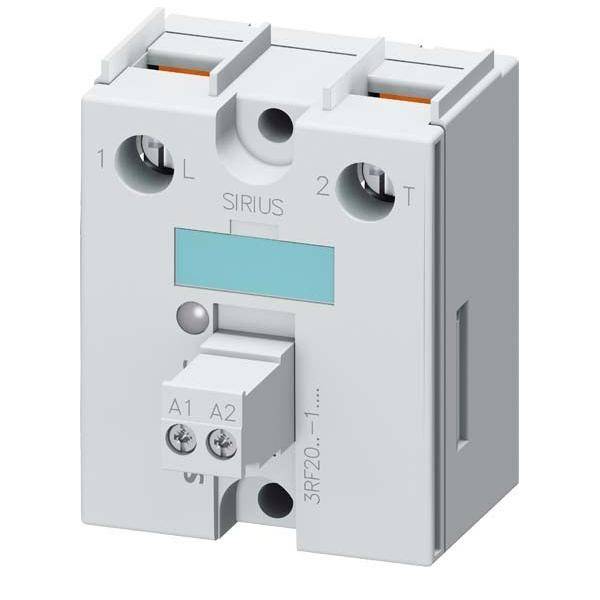

Poluprovodnički relej 1 kom. Siemens 3RF2050-1AA24 strujno opterećenje (maks.): 50 A prebacivanje pri nultom naponu
Vrsta ambalaže
Piece
Vrsta proizvoda
poluvodički relej
Kontrola napona (min.)
110 V/AC
Kontrolni napon (maks.)
230 V/AC
Preklopni napon (maks.)
460 V/AC
Tehnički list (PDF)
EAN:
Šifra proizvođača:
Kataloški br.:
Broj
Ukupno (71,99 € / komad)
71,99 €
uklj. PDV
Uključena je politika povrata u roku od 14 dana
Istaknuti proizvodi i detalji
Siemens poluvodički relej 3RF2050-1AA24 Učitaj struje (maks.): 50 A Preklopni napon (maks.): 460 V/AC nulti napon uklopa Piece 1 St.
- Širina 45 mm
- Ovaj tekst je strojno preveden.
Tehnički podaci
- Vrsta ambalaže
Piece
- Vrsta proizvoda
poluvodički relej
- Tip
3RF2050-1AA24
- Prebacivanje
nulti napon uklopa
- Priključak
vijčana stezaljka
- Kontrola napona (min.)
110 V/AC
- Kontrolni napon (maks.)
230 V/AC
- Područje upravljačkog napona
110 - 230 V/AC
- Kontrola struje (maks.)
15 mA
- Prenaponska struja (maks.)
600 A
- Prebacivanje napona (min.)
48 V/AC
- Preklopni napon (maks.)
460 V/AC
- Učitaj struje (maks.)
50 A
- Izlazni napon (min.)
48 V
- Izlazni napon (max.)
460 V/AC
- Izlazna struja maks.
50 A
- Vrsta kontakta
1 zatvarač
- Min. temperatura
-25 °C
- Maks. temperatura
+60 °C
IP20
- Širina
45 mm
- Visina
58 mm
- Dubina
48 mm
- Težina
87 g
- RoHS-konforno
Da
- Trajna struja (maks.)
50 A
- Sadržaj
1 St.
1
TRUE
50 A
AC
50 A
- UKCA
nije bitno
Dokumenti i preuzimanja
Podatkovna tablica
Podatkovna tablica 1430779 Poluprovodnički relej 1 kom. Siemens 3RF2050-1AA24 strujno opterećenje (maks.): 50 A prebacivanje pri nultom naponu
Upute za rad i sigurnost
Upute za rad i sigurnost 1430779 Poluprovodnički relej 1 kom. Siemens 3RF2050-1AA24 strujno opterećenje (maks.): 50 A prebacivanje pri nultom naponu
Opis
Semiconductor relay, 1-phase 3RF2 Overall width 45 mm, 50 A 48-460 V / 110-230 V AC screw terminal solid-state relay SIRIUS 3RF20 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state relays are available as single-phase devices in two widths, or as three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state relays are available as single-phase devices in two widths, or as three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
Isporuka uključuje
- Poluprovodnički relej 1 kom. Siemens 3RF2050-1AA24 strujno opterećenje (maks.): 50 A prebacivanje pri nultom naponu
