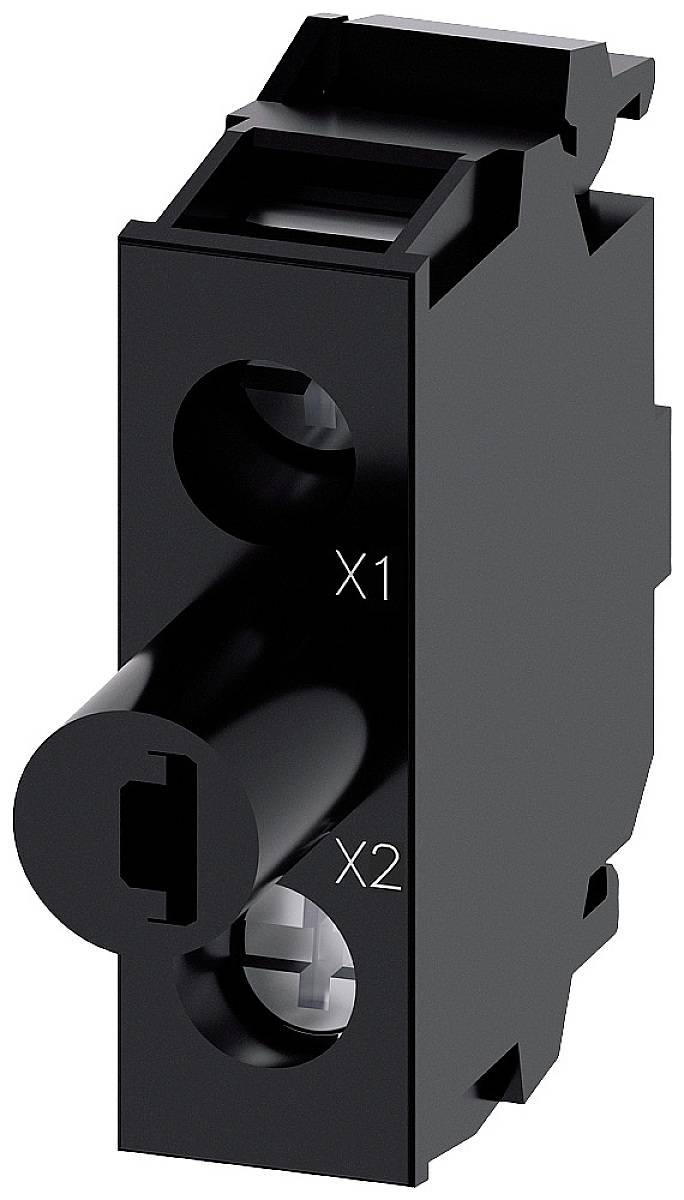

Siemens 3SU1401-2BB30-1AA0 LED modul za podnu montažu žuta 24 V DC/AC 5 St.
Tehnički list (PDF)
EAN:
Šifra proizvođača:
Kataloški br.:
2 Set(ovi) - zaliha Njemačka
Broj (Veličina pakiranja 5 St.)
Ukupno (51,99 € / komad)
51,99 €
uklj. PDV
Dostupno još samo 2 Set(ovi) - zaliha Njemačka
Tehnički podaci
- Vrsta izvora svjetlosti: LED
- Komponenta proizvoda / dioda: da
- Komponenta proizvoda / izvor svjetlosti: da
- Otpornost na vibracije: 10 ... 500 Hz: 5g
- Moment pritezanja / s vijčanim spojem / minimalno: 0,8 Nm
- Moment pritezanja / s vijčanim spojem / maksimum: 0,9 Nm
- Tip presjeka vodiča koji se može povezati / za AWG kabele: 2x (18 ... 14)
- Vrsta presjeka vodiča koji se mogu spojiti / puni / s obradom na kraju jezgre: 2x (0,5 ... 0,75 mm²)
- Vrsta presjeka vodiča koji se može spojiti / puni / bez obrade kraja jezgre: 2x (1,0 ... 1,5 mm²)
- Tip presjeka vodiča koji se mogu povezati / fino uvijeni / s obradom kraja jezgre: 2x (0,5 ... 1,5 mm²)
- Vrsta presjeka vodiča koji se mogu povezati / fino uvijeni / bez obrade kraja jezgre: 2x (1,0 ... 1,5 mm²)
- Maksimalna udarna struja: 2 A.
- Napon izolacije: 320 V
- Minimalni intenzitet svjetlosti: 900 mcd
- Maksimalni intenzitet svjetlosti: 1400 mcd
- Stupanj onečišćenja: 3
- Vrsta proizvoda
LED modul
- Određene značajke prekidača/tipkala
za podnu montažu
- Priključak
vijak
- Izvedba
s integriranom LED diodom
- Boja svjetla
žuta
- Sklopni napon
24 V DC/AC
- Prebacivanje struje (maks.)
25 mA
IP20
IP40
- Probojna čvrstoća
Četvrti kV
- Min. temperatura
-25 °C
- Maks. temperatura
+70 °C

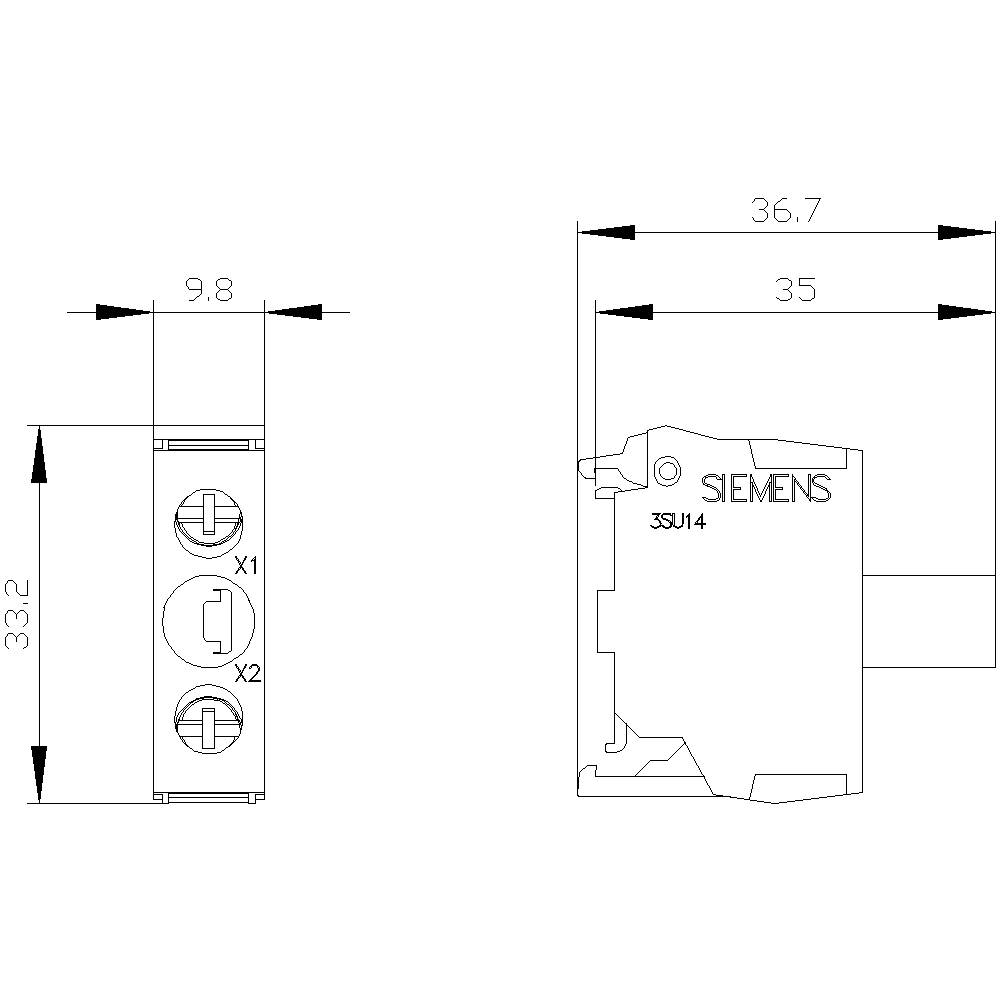

- Širina
9.8 mm
- Visina
33.2 mm
- Električni vijek trajanja
100.000
- Vrsta montaže
podna montaža
- Sadržaj
5 St.
- dim.
(Š x V x D) 9.8 x 33.2 x 29.4 mm
- RoHS-konforno
Da
- Dubina
29.4 mm
- Tip
3SU1401-2BB30-1AA0
- Uključena rasvjetna tijela
da
None
FALSE
FALSE
TRUE
Yellow
LED
TRUE
Screw connection
AC/DC
- UKCA
da
Dokumenti i preuzimanja
Podatkovna tablica
Podatkovna tablica 2262283 Siemens 3SU1401-2BB30-1AA0 LED modul za podnu montažu žuta 24 V DC/AC 5 St.
Upute za rad i sigurnost
Upute za rad i sigurnost 2262283 Siemens 3SU1401-2BB30-1AA0 LED modul za podnu montažu žuta 24 V DC/AC 5 St.
Opis
LED module with integrated LED 24 V AC/DC, yellow, screw terminal, for floor mounting, Minimum order quantity 5 or a multiple thereof LED module SIRIUS ACT for illuminating SIRIUS ACT pushbuttons and indicator lights with high luminosity thanks to energy efficient LED technology.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, various voltage variants, various types of connection and installation.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, various voltage variants, various types of connection and installation.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
