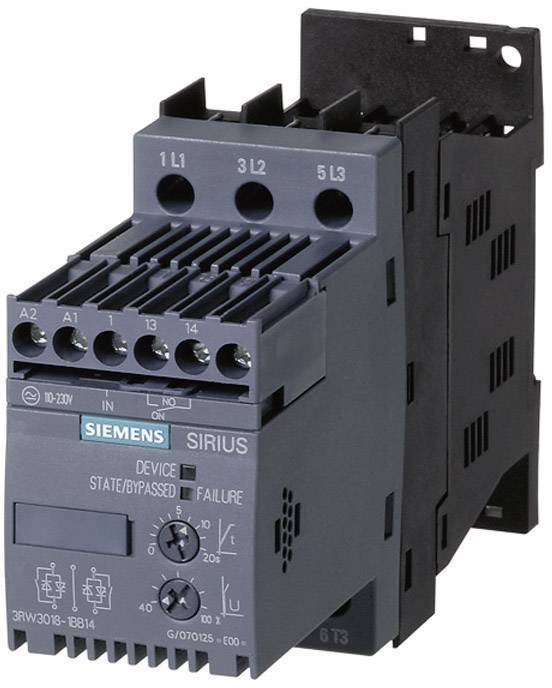

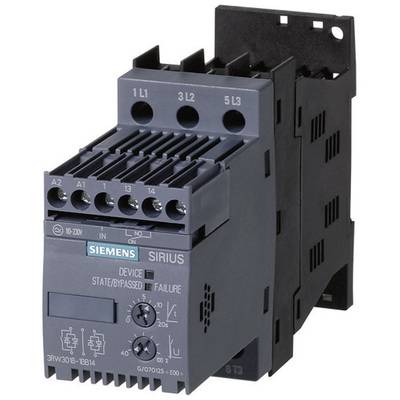

Siemens 3RW3014-1BB14 3RW30141BB14 mekani pokretač Snaga motora bei 400 V 3.0 kW Snaga motora kod 230 V 1.5 kW 400 V/AC
Tehnički list (PDF)
EAN:
Šifra proizvođača:
Kataloški br.:
3 kom. - zaliha Njemačka
Broj
Ukupno (275,00 € / komad)
275,00 €
uklj. PDV
Dostupno još samo 3 kom. - zaliha Njemačka
Tehnički podaci
- Napon motora
200..480 V/AC
- Vrsta proizvoda
mekani pokretač
- Priključna struja
6.5 A
- Snaga motora kod 230 V
1.5 kW
- Snaga motora bei 400 V
3.0 kW
- Nazivni napon
400 V/AC
- Faze djelovanja
2
- Proizvođač-br. dijela
3RW30141BB14
- Nazivna struja
6 A
- Nazivna struja - zaokružena
6 A
- Tip
3RW3014-1BB14
- Snaga motora pri 230 V/ 400 V
3.0 kW

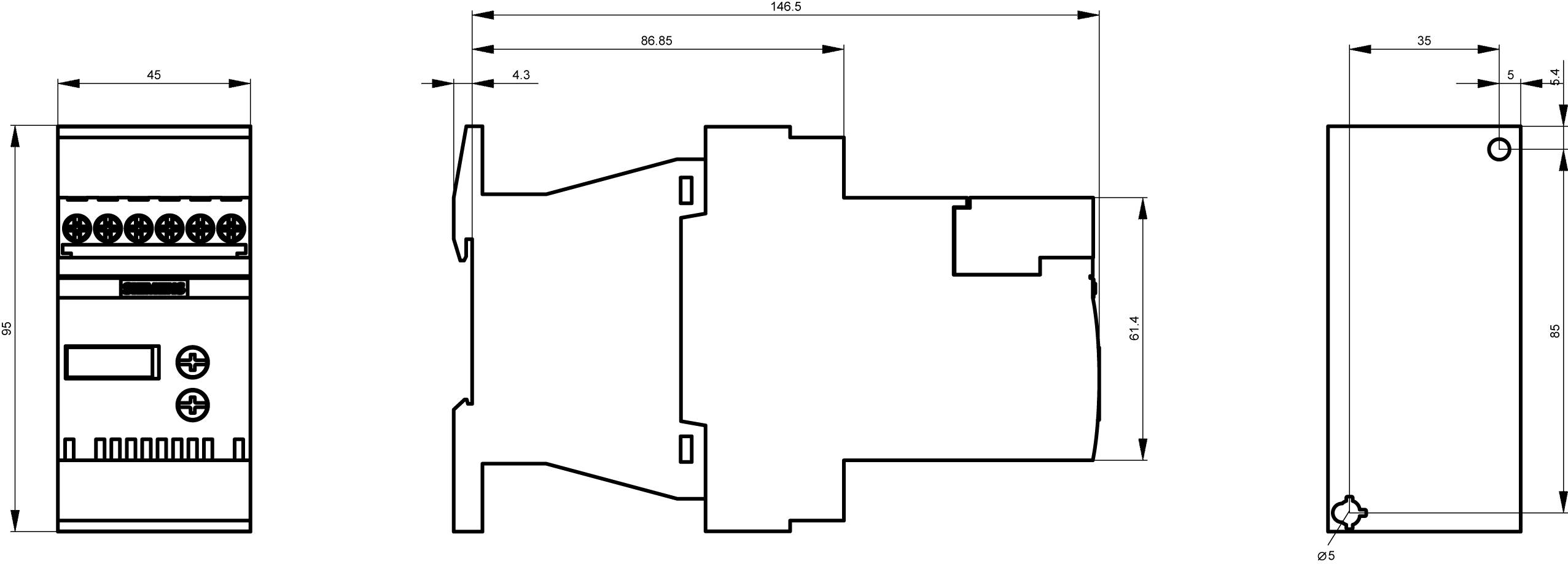

- dim.
(D x Š x V) 93 x 45 x 97.5 mm
- Priključak
vijčana stezaljka
- Širina
45 mm
- Visina
97.5 mm
- Dužina
93 mm
- Dubina
150 mm
- Maks. temperatura
40 °C
Single direction
110-230 V
110-230 V
110-230 V
IP20
Other
6.5 A
1.5 kW
3 kW
40 °C
FALSE
AC/DC
- UKCA
nije bitno
Dokumenti i preuzimanja
Podatkovna tablica
Podatkovna tablica 197798 Siemens 3RW3014-1BB14 3RW30141BB14 mekani pokretač Snaga motora bei 400 V 3.0 kW Snaga motora kod 230 V 1.5 kW 400 V/AC
Upute za rad i sigurnost
Upute za rad i sigurnost 197798 Siemens 3RW3014-1BB14 3RW30141BB14 mekani pokretač Snaga motora bei 400 V 3.0 kW Snaga motora kod 230 V 1.5 kW 400 V/AC
Opis
SIRIUS soft starter S00 6.5 A, 3 kW/400 V, 40 °C 200-480 V AC, 110-230 V AC/DC Screw terminals Soft starter SIRIUS 3RW30 for standard applications for the soft starting of three-phase asynchronous motors.
Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction and ensures low heat dissipation in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA).
The 3RW soft starters are available for supply systems up to 690 V in a wide performance range with different control supply voltages and all with both screw and spring-loaded terminals. For the 3RW30/40 there are additional versions with 24 V control supply voltage. Some of the 3RW40 up to size S3, and all 3RW44 units also offer thermistor motor protection.

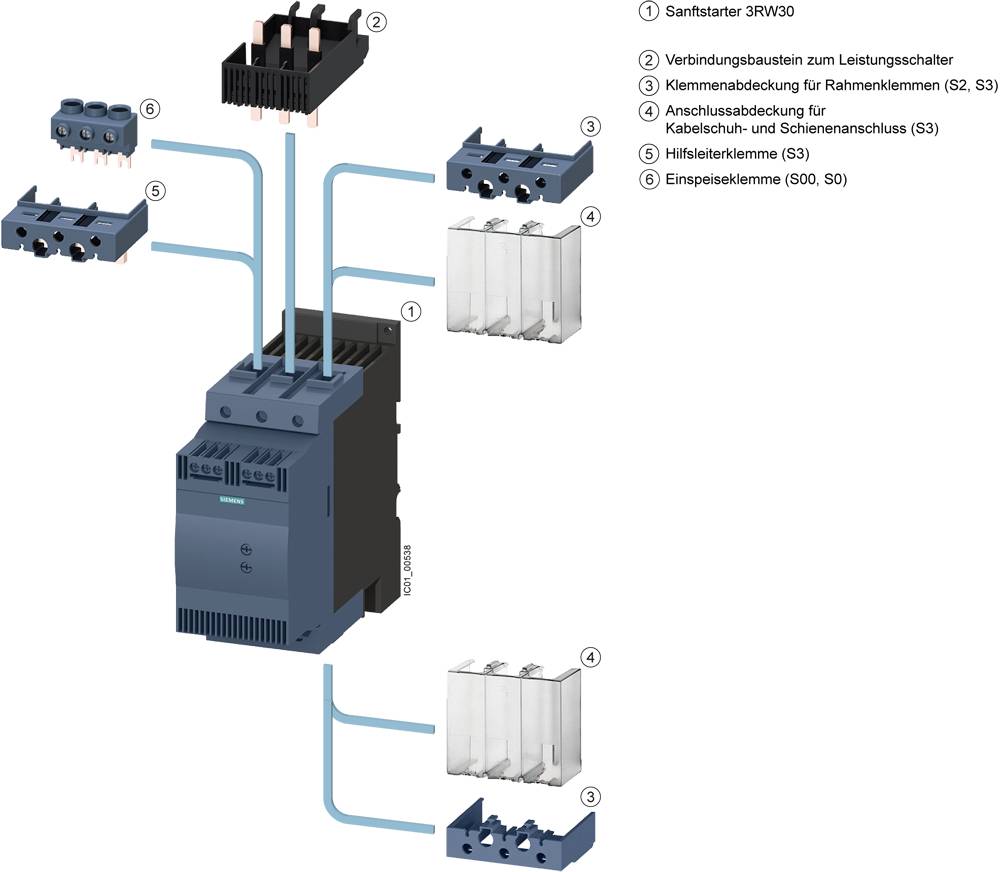

With the optional link module, the soft starters can be attached to the circuit breakers, even for the versions with spring-loaded terminals.
Simple, efficient and always up to date - SIRIUS modular system.
Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction and ensures low heat dissipation in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA).
The 3RW soft starters are available for supply systems up to 690 V in a wide performance range with different control supply voltages and all with both screw and spring-loaded terminals. For the 3RW30/40 there are additional versions with 24 V control supply voltage. Some of the 3RW40 up to size S3, and all 3RW44 units also offer thermistor motor protection.
With the optional link module, the soft starters can be attached to the circuit breakers, even for the versions with spring-loaded terminals.
Simple, efficient and always up to date - SIRIUS modular system.
Isporuka uključuje
- Mekani zaganjač Siemens 3RW3014 snaga motora pri 400 V 3.0 kW snaga motora pri 230 V 1.5 kW 400 V/AC nazivna struja 6 A
