Slika slična
1/3
Slika slična

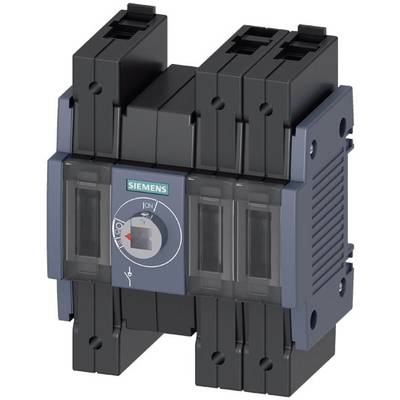

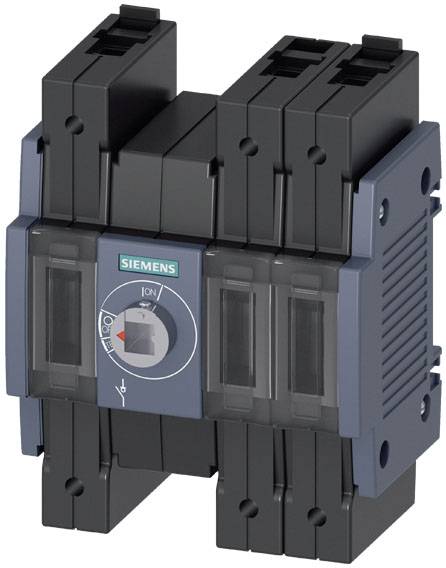

80 A 4 prebacivanje Siemens 3KD28302ME200
EAN:
Šifra proizvođača:
Kataloški br.:
Broj polova
3
Nazivna struja - zaokružena
80 A
Vrsta kontakta
4 prebacivanje
Pogonski napon (detalji)
1000 V/AC
dim.

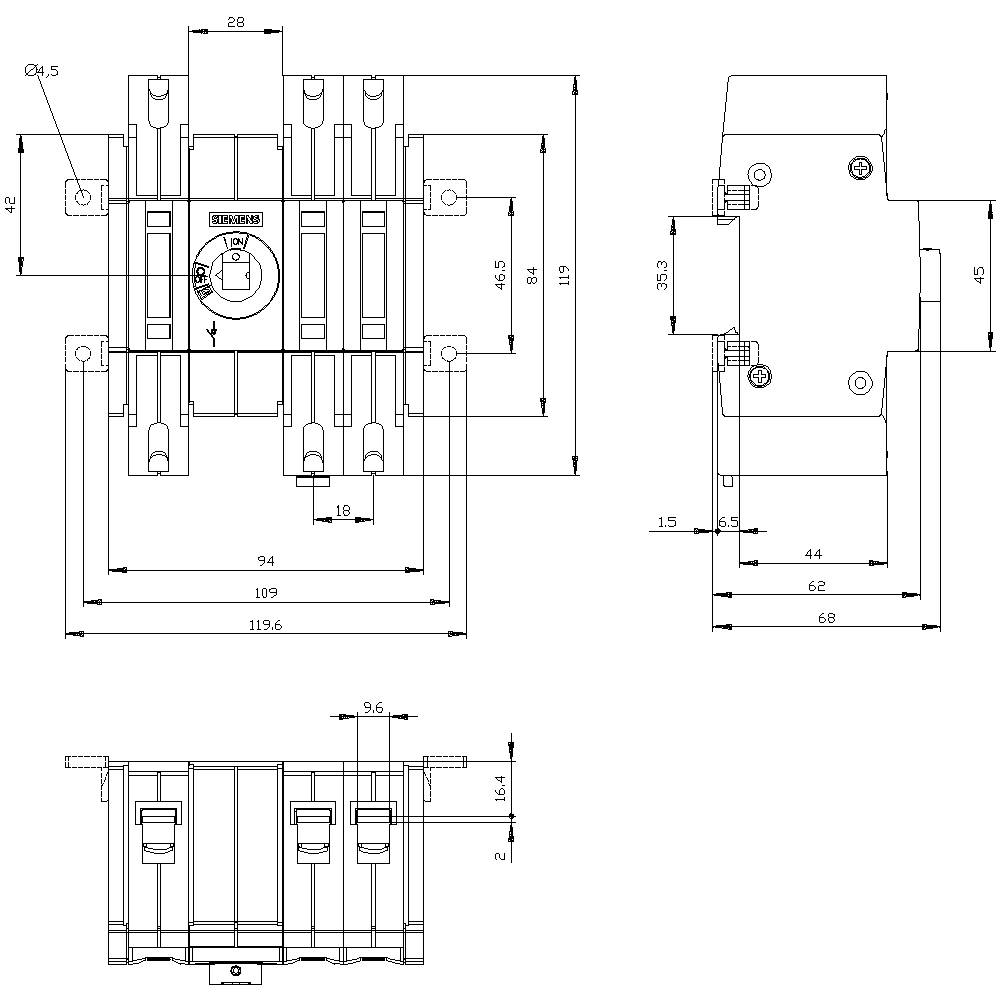

(Š x V x D) 94 x 119 x 68 mm
Broj
Ukupno (99,99 € / komad)
€
Tehnički podaci
- Dizajn zaslona / za rotacijski pogonski mehanizam spojnice vrata zaslona položaja sklopke: ON-OFF
- Projekt električnog priključka za glavni krug: stezaljka kutije
- Veličina rastavljača sklopke: 1
- Način pričvršćivanja: pričvršćivanje vijkom i DIN šinom 35 mm
- Podna montaža: da
- Napon izolacije: 1000 V
- Vrsta zaštite: IP20
- Temperatura okoline tijekom rada: -25 ° C - +70 ° C
- Gubitak snage maks .: 6,3 W
- Mehanički vijek trajanja (preklopni ciklusi) / tipično: 15000
- Podnosivi napon impulsa: 8 kV
- Vrsta kontakta
4 prebacivanje
- Pogonski napon (detalji)
1000 V/AC
- Broj polova
3
- dim.
(Š x V x D) 94 x 119 x 68 mm
- Nazivna struja
80 A
- Nazivna struja - zaokružena
80 A
- Izvedba
Prednji pogon
- Širina
94 mm
- Visina
119 mm
- Dubina
68 mm
0
0
80 A
3
IP20
4
1
FALSE
FALSE
Frame clamp
TRUE
None
TRUE
TRUE
TRUE
45 kW
3 kA
Other
TRUE
FALSE
FALSE
TRUE
TRUE
1000 V
FALSE
FALSE
Built-in device fixed built-in technique
80 A
37 kW
FALSE
80
Other
Dokumenti i preuzimanja
Upute za rad i sigurnost
Upute za rad i sigurnost 2263562 80 A 4 prebacivanje Siemens 3KD28302ME200
Opis
SWITCH-DISCONNECTOR 80A, FRAME SIZE 1, 3-POLE FRONT OPERATING CENTER BASIC UNIT WITHOUT HANDLE BOX TERMINAL 3KD switch disconnector up to 1600 A as efficient master, emergency stop or maintenance switch. 3KD switch disconnectors up to 1600 A from Siemens offer reliable operator protection and ensure high plant availability in industry, infrastructure and buildings. As main, EMERGENCY OFF or maintenance switches, 3KD switch disconnectors reliably connect and disconnect live electrical equipment and provide a safety isolating function and isolating distance in low-voltage circuits. 1. Reliable protection from electrical accidents. 2. Rugged technology for high system availability. 3. Wide range of applications with variable connection and operating mechanism types. 4. Simple retrofitting of additional functions with an extensive range of accessories. 5. Quick installation on the standard mounting rail with frame sizes up to 200 A. 6. Efficient engineering with extensive CAx data. 7. Simple documentation with the manual configurator. 8. Suitable for wind power and solar plants. www.siemens.com/switching-devices. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
