Name: 500 A 6 zatvarač, 4 otvarač, 2 otvarač Siemens 3KD44340PE400
Brand: Siemens
SKU: 2263595
Availability: BackOrder

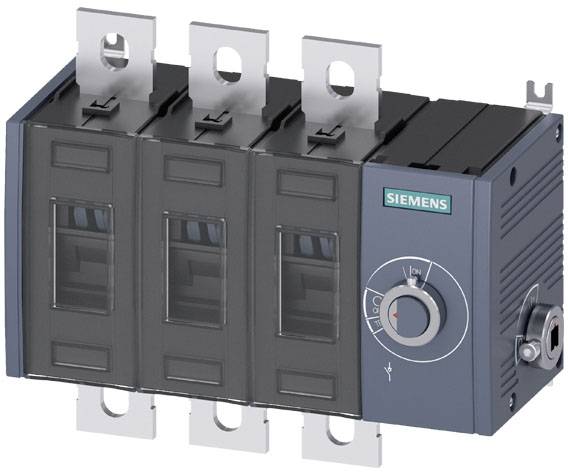

Siemensov električni prekidač, siv, s četiri jednako velika segmenta i centralnim okretnim regulatorom, montiran na metal.

'Q' na lijevoj strani, povezan s nizom od tri simbolizirana prekidača, numerirana od 1 do 6 odozgo prema dolje.

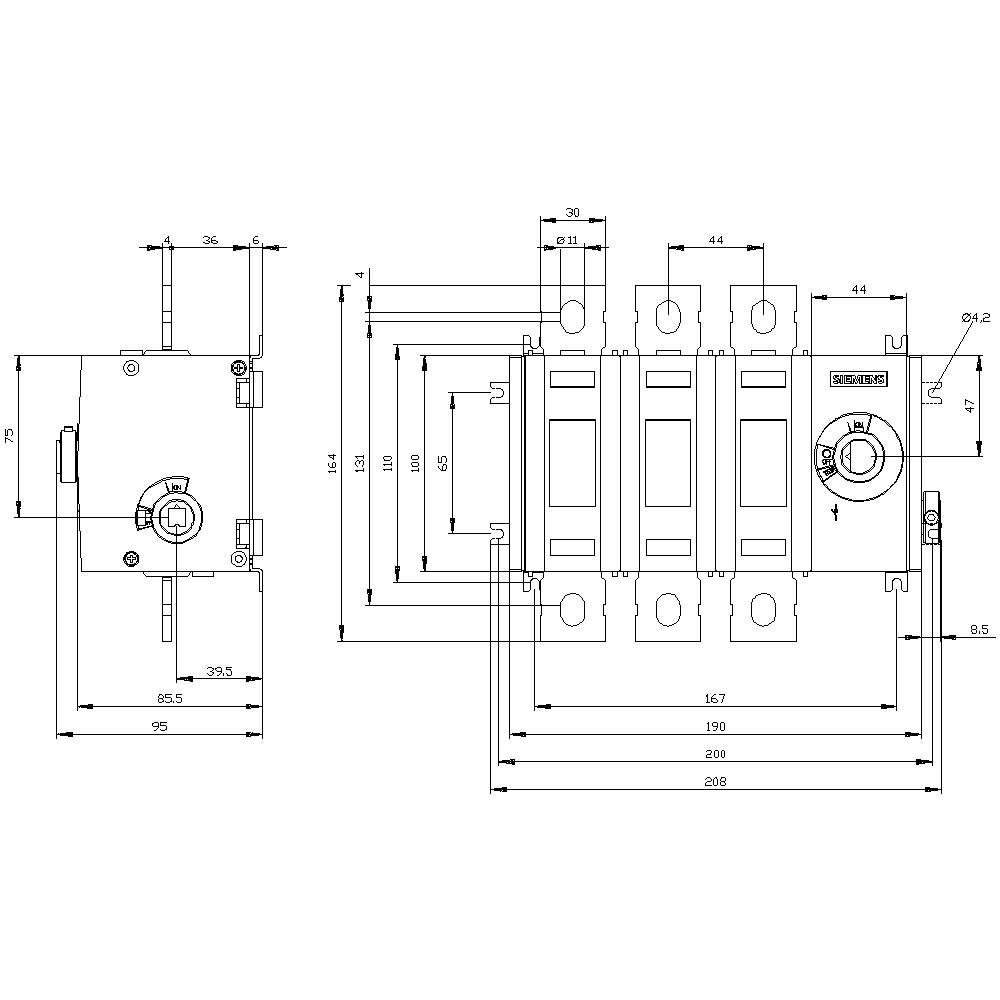

Tehnički nacrt električnog prekidača s detaljnim dimenzijama i oznakama.

1/3

Slika slična

Broj polova

Nazivna struja - zaokružena

500 A

Vrsta kontakta

6 zatvarač

4 otvarač

2 otvarač

Pogonski napon (detalji)

1000 V/AC

dim.

(Š x V x D) 198.5 x 164 x 95 mm

Tehnički list (PDF)

EAN:

Šifra proizvođača:

Kataloški br.:

Dostava uto,17.11.

Broj

kom. - zaliha Njemačka

Ukupno (565,00 € / komad)

565,00 €

uklj. PDV

Uključena je politika povrata u roku od 14 dana

Obrazac za prijavu nezakonitog sadržaja

Tehnički podaci

Dizajn zaslona / za rotacijski pogonski mehanizam spojnice vrata zaslona položaja sklopke: ON-OFF
Dizajn električnog priključka za glavni krug: ravni spoj
Veličina rastavljača sklopke: 3
Vrsta montaže: vijčana montaža
Podna montaža: da
Napon izolacije: 1000 V
Vrsta zaštite: IP00
Temperatura okoline tijekom rada: -25 ° C - +70 ° C
Gubitak snage maks .: 51,6 W
Mehanički vijek trajanja (preklopni ciklusi) / tipično: 15000
Podnosivi napon impulsa: 12 kV

Vrsta kontakta: 6 zatvarač
4 otvarač
2 otvarač

Pogonski napon (detalji): 1000 V/AC

Broj polova: 3

dim.: (Š x V x D) 198.5 x 164 x 95 mm

Nazivna struja: 500 A

Nazivna struja - zaokružena: 500 A

Izvedba: Pogon bočne stijenke

Širina: 198.5 mm

Visina: 164 mm

Dubina: 95 mm

: 6

: 6

: 400 A

: 3

: IP00

: 0

: 1

: FALSE

: FALSE

: Flat plug-in connection

: FALSE

: None

: TRUE

: TRUE

: TRUE

: 200 kW

: 13 kA

: Other

: TRUE

: FALSE

: FALSE

: FALSE

: FALSE

: 1000 V

: FALSE

: FALSE

: Built-in device fixed built-in technique

: 500 A

: 220 kW

: FALSE

: 400

: Other

UKCA: da

Dokumenti i preuzimanja

Podatkovna tablica

Podatkovna tablica 2263595 500 A 6 zatvarač, 4 otvarač, 2 otvarač Siemens 3KD44340PE400

Upute za rad i sigurnost

Upute za rad i sigurnost 2263595 500 A 6 zatvarač, 4 otvarač, 2 otvarač Siemens 3KD44340PE400

Opis

SWITCH-DISCONNECTOR 500A, FRAME SIZE 3, 3-POLE LATERAL DRIVE RIGHT BASIC UNIT WITHOUT HANDLE FLAT TERMINAL 3KD switch disconnector up to 1600 A as efficient master, emergency stop or maintenance switch. 3KD switch disconnectors up to 1600 A from Siemens offer reliable operator protection and ensure high plant availability in industry, infrastructure and buildings. As main, EMERGENCY OFF or maintenance switches, 3KD switch disconnectors reliably connect and disconnect live electrical equipment and provide a safety isolating function and isolating distance in low-voltage circuits. 1. Reliable protection from electrical accidents. 2. Rugged technology for high system availability. 3. Wide range of applications with variable connection and operating mechanism types. 4. Simple retrofitting of additional functions with an extensive range of accessories. 5. Quick installation on the standard mounting rail with frame sizes up to 200 A. 6. Efficient engineering with extensive CAx data. 7. Simple documentation with the manual configurator. 8. Suitable for wind power and solar plants. www.siemens.com/switching-devices. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
