Name: 2000 A 8 zatvarač, 8 otvarač Siemens 3KD56300RE200
Brand: Siemens
SKU: 2263612
Availability: BackOrder

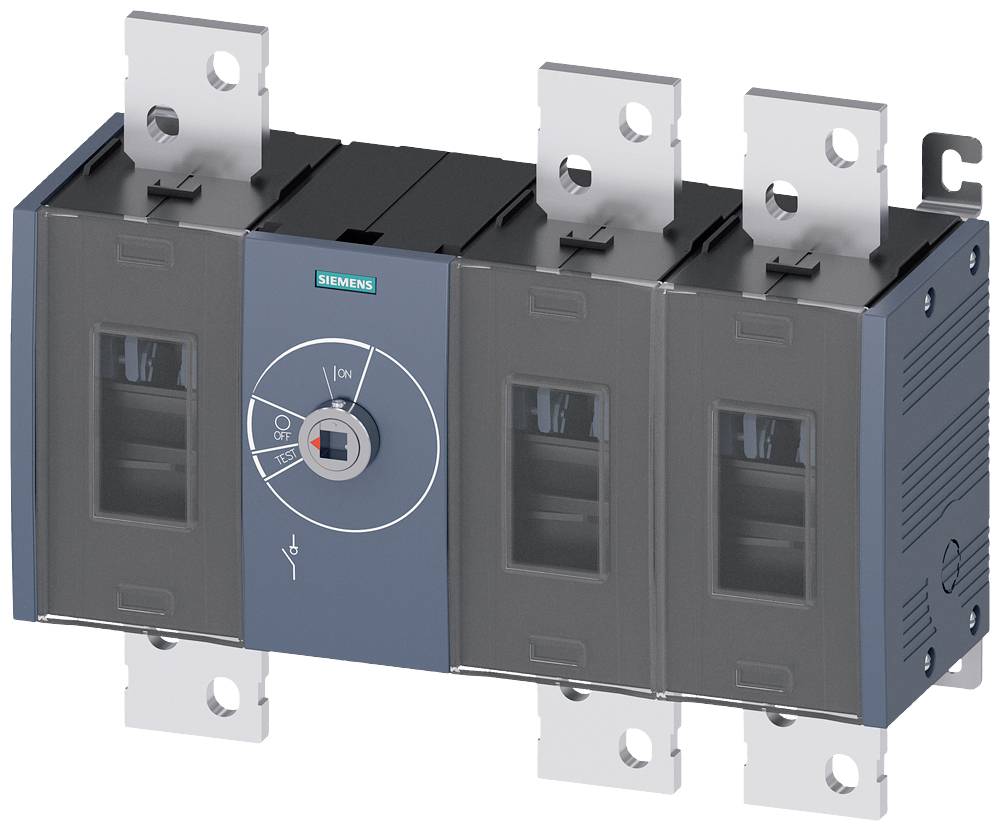

Električni prekidač snage tvrtke Siemens s četiri priključne točke, okretnim sklopnikom u sredini i metalnim kontaktima.

Shematski prikaz prikazuje trofazni prekidač '-Q' s numeriranim priključcima 1, 2, 3, 4, 5 i 6.

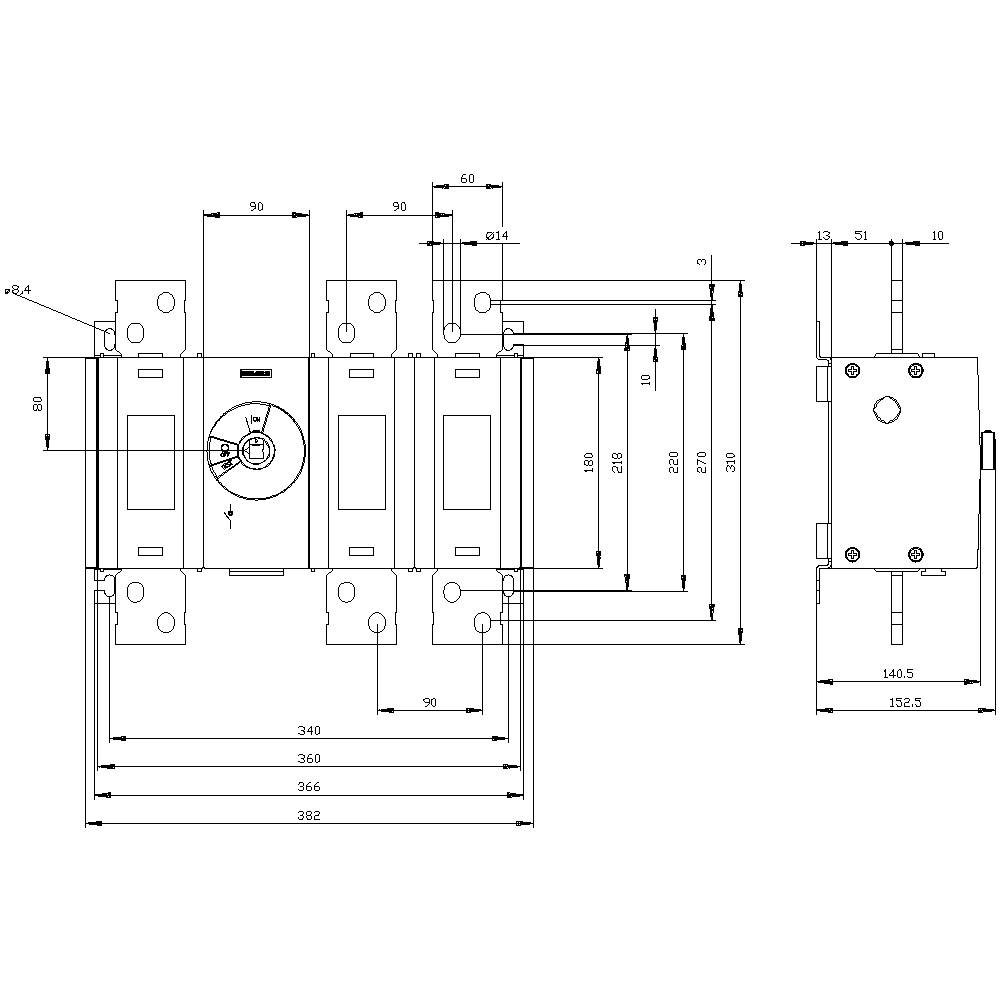

Tehnički nacrt električnog prekidača s detaljnim dimenzijama i pogledima sprijeda i sa strane.

1/3

Slika slična

Broj polova

Nazivna struja - zaokružena

2000 A

Vrsta kontakta

8 zatvarač

8 otvarač

Pogonski napon (detalji)

1000 V/AC

dim.

(Š x V x D) 382 x 310 x 152.5 mm

EAN:

Šifra proizvođača:

Kataloški br.:

Dostava uto,17.11.

Broj

kom. - zaliha Njemačka

Ukupno (4.415,00 € / komad)

4.415,00 €

uklj. PDV

Uključena je politika povrata u roku od 14 dana

Obrazac za prijavu nezakonitog sadržaja

Tehnički podaci

Dizajn zaslona / za rotacijski pogonski mehanizam spojnice vrata zaslona položaja sklopke: ON-OFF
Dizajn električnog priključka za glavni krug: ravni spoj
Veličina rastavljača sklopke: 5
Vrsta montaže: vijčana montaža
Podna montaža: da
Napon izolacije: 1000 V
Vrsta zaštite: IP00
Temperatura okoline tijekom rada: -25 ° C - +70 ° C
Gubitak snage maks .: 240 W
Mehanički vijek trajanja (preklopni ciklusi) / tipično: 8000
Podnosivi napon impulsa: 12 kV

Vrsta kontakta: 8 zatvarač
8 otvarač

Pogonski napon (detalji): 1000 V/AC

Broj polova: 3

dim.: (Š x V x D) 382 x 310 x 152.5 mm

Nazivna struja: 2000 A

Nazivna struja - zaokružena: 2000 A

Izvedba: Prednji pogon

Širina: 382 mm

Visina: 310 mm

Dubina: 152.5 mm

: 8

: 8

: 2000 A

: 3

: IP00

: 0

: 1

: FALSE

: FALSE

: Flat plug-in connection

: TRUE

: None

: TRUE

: TRUE

: TRUE

: 1000 kW

: 55 kA

: Other

: TRUE

: FALSE

: FALSE

: FALSE

: FALSE

: 1000 V

: FALSE

: FALSE

: Built-in device fixed built-in technique

: 2000 A

: 400 kW

: FALSE

: 2000

: Other

UKCA: da

Dokumenti i preuzimanja

Upute za rad i sigurnost

Upute za rad i sigurnost 2263612 2000 A 8 zatvarač, 8 otvarač Siemens 3KD56300RE200

Opis

SWITCH-DISCONNECTOR 2000A, FRAME SIZE 5, 3-POLE FRONT OPERATING CENTER BASIC UNIT WITHOUT HANDLE FLAT TERMINAL 3KD switch disconnector up to 1600 A as efficient master, emergency stop or maintenance switch. 3KD switch disconnectors up to 1600 A from Siemens offer reliable operator protection and ensure high plant availability in industry, infrastructure and buildings. As main, EMERGENCY OFF or maintenance switches, 3KD switch disconnectors reliably connect and disconnect live electrical equipment and provide a safety isolating function and isolating distance in low-voltage circuits. 1. Reliable protection from electrical accidents. 2. Rugged technology for high system availability. 3. Wide range of applications with variable connection and operating mechanism types. 4. Simple retrofitting of additional functions with an extensive range of accessories. 5. Quick installation on the standard mounting rail with frame sizes up to 200 A. 6. Efficient engineering with extensive CAx data. 7. Simple documentation with the manual configurator. 8. Suitable for wind power and solar plants. www.siemens.com/switching-devices. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
